NAGATA WORKS CO., LTD.

NAGATA WORKS CO., LTD.

4-8, Funabori 1-chome, Edogawa-ku, Tokyo 134-0091, Japan
Phone:(03)3686-3516
FAX:(03)3686-2328

Outline "NAGATA WORKS CO., LTD."

Corporate history

– Established 1906
Toshiyuki Nagata and Chikato Nagata established Nagata Works Company and manufactured brewing machines.
– 1944
During the Second World War, the company stopped to manufacture and sell brewing machines.
– 1948
Sadayoshi Nagata re-established NAGATA WORKS CO., LTD. at Miyoshi, Edogawa- ku, Tokyo.
– 1960
Moved to Funabori, Edogawa-ku, Tokyo.
– 1965~
The bottling plant started to operate for the manufacturing of drugs, pharmacy, cosmetics, foods, and industrial chemicals.
– 1977
Toshiaki Nagata was installed as president.
– 1989~
The company advanced into the manufacturing industry of highly pure industrial chemicals for electronic device production. Under the highly clean circumstances, the company manufactures and sells plants for washing, filling, capping, labeling, etc. of receptacles of solvents, as chemicals for electronic materials.
– 2009
Hiroyuki Nagata succeeded Toshiaki Nagata in his post.

NAGATA-DONKU TYPE CONTAINER WASHING MACHINE<br />(Bottle Washing Machines)

NAGATA-DONKU TYPE CONTAINER WASHING MACHINE
(Bottle Washing Machines)

NAGATA WORKS CO., LTD.

FEATURES

Powerful detergency is exercised with ecological high performance features.

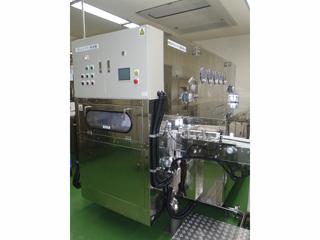

<Full-automatic/semi-automatic bottle washing/drying machine>
– Suitable for washing, drying and cooling of recycled and new bottles
(bloomed bottles, TCT treated bottles, sulfite treated bottles).
– This non-brush type machine brings out highest detergency and is capable of washing both inside and outside of the container.
– It emits a jet of water by selecting adequate spray angle, temperature and pressure so as to minimize water consumption.
– Water recovered from each stage is designed to recycle, and so it is economical. Combined use for containers of different shape is also possible.
Furthermore, a combination with the in-line automatic washing system and/or the automatic holder washing system can be arranged.

<Ultrasonic interior washing system>
– Fill up water in the glass bottle and put in the ultrasonic transducer. Extraneous matter adherent to the interior of the glass bottle will be removed by emulsification and diffusion through the strength of ultrasonic wave.
– Function of removing foreign matter inside the container is so effective that a great number of installations are recorded in chemical industries, medicals and clean bottle manufacturers.

<Full-automatic/semi-automatic air cleaner, rinser>
– It rinses new containers with air or warm water (water) and eliminates corrugated cardboard wastes, hair, dusts, etc. In case of air washing, it can be combined with static eliminator, etc.

SPECIFICATIONS and NOTES

– Container used
Glass bottle, stainless steel can, rigid plastic container, etc.
– Basic machine materials
Stainless steel JIS SUS 304.
– Others
Some models can be installed in explosion-proof area, or clean room area.

NAGATA WORKS CO., LTD.

4-8, Funabori 1-chome, Edogawa-ku, Tokyo 134-0091, Japan
Phone:(03)3686-3516
FAX:(03)3686-2328
CORPORATE PROFILE
NAGATA-DONKU TYPE LIQUID FILLING MACHINE<br />(Liquid Filling Machines)NAGATA-DONKU TYPE LIQUID FILLING MACHINE<br />(Liquid Filling Machines)

NAGATA-DONKU TYPE LIQUID FILLING MACHINE
(Liquid Filling Machines)

NAGATA WORKS CO., LTD.

FEATURES

A wide variety of models satisfy various customer needs.

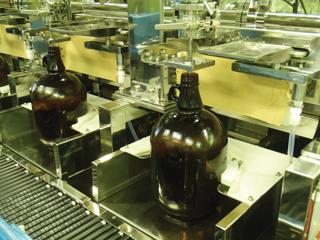

<Full automatic/semi automatic model>
– Filling devices in consideration of peculiarities of liquid, e.g. temperature, viscosity, specific gravity, fizziness,etc. are available.
– Pertinent filling device is selected depending on productivity and particular requirements of each customer.

<Fill weight type filler>
– Filling is done while continuously measuring the actual weight of liquid by the weighing scale. Suitable for filling of fizzy liquid.
– Also available is the one in which the nozzle follows the liquid surface.

<Volumetric type filler>
– Filling is done while measuring the volume of liquid. It uses dispensing burette, flowmeter.

<Liquid level control type filler>
– Most popular type filler, in which the liquid level becomes uniform after the liquid is filled.

SPECIFICATIONS and NOTES

– Typical applications
Japanese rice-wine, syrup, sauce, drinks, various medicinal solution, high-purity solution for semi-conductors, industrial chemicals, cosmetics, fragrant materials, etc.
– Container used
Glass bottle, stainless steel can, rigid plastic container, etc.
– Basic machine materials
Stainless steel JIS SUS 304
– Others
All fillers can be installed in the explosion-proof area and clean room area.
Fill amounts for respective products can be controlled by transmitting filled amount data to the upper computer.

NAGATA WORKS CO., LTD.

4-8, Funabori 1-chome, Edogawa-ku, Tokyo 134-0091, Japan
Phone:(03)3686-3516
FAX:(03)3686-2328
