Vision Sensor / Label Inspection SystemsVision Sensor / Label Inspection Systems

Vision Sensor / Label Inspection Systems

OPTEX FA CO., LTD.

FEATURES

OPTEX FA CO., LTD. known as OPTEX FA, is the world’s top manufacturer of print inspection machines, being number one in in terms of their shipment volume.

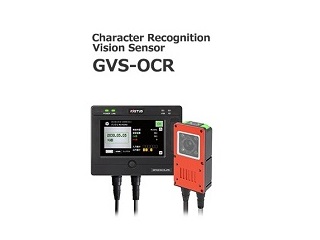

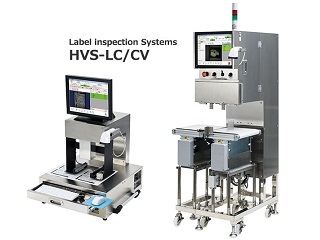

The GVS-OCR Series  Series are available for checking best-before dates and the HVS-LC/CV Series for inspecting print contents of foodlabels.
OPTEX FA satisfies the wide range of print checking needs for the food processing lines. Also, as the industry’s price leader, the company is making a large contributing to the reduction of machine introduction costs.

SPECIFICATIONS and NOTES

Standard typeWide angle type
ModelGVS-OCR-SGVS-OCR-W
Angle of view20°40°
Working distance30 to 150 mm40 to 100 mm
Imaging range23 × 15.5 mm to 97.5 × 65 mm55.5 × 38 mm to 120 × 82.5 mm
Light sourceWhite LED × 4
Light source service lifeApprox. 50,000 hours (ordinary temperature and humidity, brightness
decreased from initial level by 30%; reference value)
Power supply voltage24 VDC ± 10%
Current consumptionMax. 300 mA (camera only)
Resolution624 × 420 pixels, progressive method
Size of effective pixel area3.31 × 2.23 mm (horizontal × vertical)
Guaranteed lens driving count100,000 times
OutputNPN/PNP open collector output × 4 (including judgment output)
Max. 100 mA, residual voltage: 1.7 V or less (with the NPN setting)/
2.5 V or less (with the PNP setting)
Input6 (including synchronous input)
Communication interfaceEthernet 10/100BASE-TX
IndicatorsJudgment indicator (green/red)/status indicator/LINK indicator
Built-in clock accuracyMonthly error: −45 seconds to +1 minute and 15 seconds (typical value)
Built-in clock backup5 months (typical value with the built-in battery fully charged)
Image savingBuilt-in memory: 1000 images (Writing stops when the memory is full.)
Degree of protectionIEC: IP67 *Conforms to IEC 60529
Ambient temperature/humidity0 to +40°C/35 to 85%RH (no freezing or condensation)
Storage temperature/humidity−20 to +70°C/25 to 95%RH (no freezing or condensation)
Vibration resistance10 to 55 Hz; amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions
Shock resistanceApprox. 15 G, 3 times in each of the X, Y, and Z directions
LED classificationRisk Group 1 (Low-Risk) *Conforms to IEC 62471
Applicable regulationsEMCEMC directive (2014/30/EU)
EnvironmentRoHS directive (2011/65/EU), China RoHS (MIIT Order No. 32), Battery directive (2006/66/EC)
SafetyMachinery directive (2006/42/EC)
Applicable standardsEN 61326-1: 2013, EN 55011: 2016/A1: 2017 Group 1, Class A
MaterialHousing: aluminum, lens unit: acrylic, indicator unit: polycarbonate
WeightApprox. 220 g
ModelGVS-MN
Power supply voltage24 VDC ± 10% (when using the cable for power and I/O)
Current consumptionMax. 200 mA (monitoring only)
Number of connectable camerasMax. 16
OutputNPN/PNP open collector output × 6
Max. 100 mA, residual voltage: 1.7 V or less (with the NPN setting)/
2.5 V or less (with the PNP setting)
Display, control device4.3-inch wide TFT LCD, touch panel, operation button, indicators (POWER/LINK/USB/SD)
LCD light source service lifeApprox. 10,000 hours (ordinary temperature and humidity,
brightness decreased from initial level by 50%; reference value)
Memory storageUSB 2.0 × 1 port, microSD card slot × 1
Communication interfaceEthernet 10/100BASE-TX
Built-in clock accuracyMonthly error: −45 seconds to +1 minute and 15 seconds (typical value)
Built-in clock backup5 months (typical value with the built-in battery fully charged)
Image savingBuilt-in memory: 5 GB
External memory:
USB memory device/microSD card (Writing stops when the memory is full.)
Degree of protectionIEC: IP54 *Conforms to IEC 60529
Ambient temperature/humidity0 to +40°C/35 to 85%RH (no freezing or condensation)
Storage temperature/humidity−20 to +70°C/25 to 95%RH (no freezing or condensation)
Vibration resistance10 to 55 Hz; amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions
Shock resistanceApprox. 15 G, 3 times in each of the X, Y, and Z directions
Applicable regulationsEMCEMC directive (2014/30/EU)
EnvironmentRoHS directive (2011/65/EU), China RoHS (MIIT Order No. 32),
Battery directive (2006/66/EC)
Applicable standardsEN 61326-1: 2013, EN 55011: 2016/A1: 2017 Group 1, Class A
MaterialHousing: polycarbonate
WeightApprox. 290 g
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
* This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.


ModelHVS-LCHVS-CV
Basic specificationsCPUIntel CPU
Memory8GB
Input & OutputEthernet, USBI/O, Ethernet
OSWindows 10, 64bit
Inspection specificationRecognizable CharactersAlphameric Characters, Specific Kanji Characters
Inspection WindowsMax. 32 windows
Product Data EntryUp to 1,000 different kinds of products
[Option:10,000 varieties can be selected]
Rotation Correction±180 degrees
Character Slant Correction ±45 degrees
Automatic Calendar FunctionAvailable
Barcode Reading FunctionAvailable
Memory function NG Image Storage Up to 1,000 images (BMP file)*1
ReinspectionReinspection is possible using NG images.
Entire Image StorageApprox. 8,000,000 images (800GB) as standard*2
Display15"(XGA), optional touch panel
SecurityID/PASSWORD2 levels
CameraImage Sensor5,000,000 pixel Color Camera
*1 An image that can be re-examined.
*2 May vary depending on the image sizes.
