TOKYO SHISETSU-KOGYO CO.,LTD.

538-2, Nanae, Tomisato-shi, Chiba 286-0221, Japan
Sales department, industrial machine: Direct number +81-476-92-1192
TEL: +81-476-92-1151 FAX: +81-476-92-1150
URL: http://www.tokyoshisetsu.co.jp

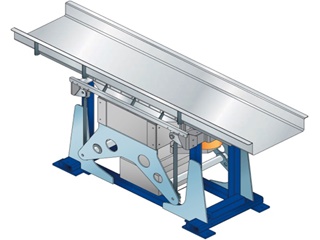

"QUICK-BACK" HORIZONTAL CONVEYING SYSTEM (Packaging Related Equipment)

TOKYO SHISETSU-KOGYO CO.,LTD.

FEATURES

– The product is conveyed gently and as if it glides without breaking apart. Due to the horizontal movement but not the up-down movement, it is suitable for food and confectionery that easy to break or separate.
1) Gentle and gliding conveyance give no damage on the product.
2) Quiet conveyance with no impacting noise.
3) Best suit for easy to break, easy to separate or light weight products.
4) For ward / Back ward Operation

SPECIFICATIONS and NOTES

– Applications
Snacks, etc.
– Trough size
300(W) × 1,850(L) mm
– Speeds
8~10m/min.
– Power usage
0.75kW × 1

TOKYO SHISETSU-KOGYO CO.,LTD.

538-2, Nanae, Tomisato-shi, Chiba 286-0221, Japan
Sales department, industrial machine: Direct number +81-476-92-1192
TEL: +81-476-92-1151 FAX: +81-476-92-1150
URL: http://www.tokyoshisetsu.co.jp
CORPORATE PROFILE

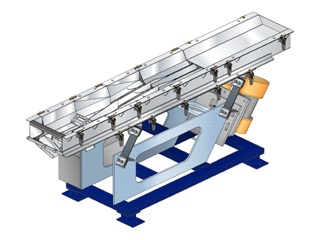

ARRAY & CARRYING VIBRATING CONVEYOR (Packaging Related Equipment)

ARRAY & CARRYING VIBRATING CONVEYOR (Packaging Related Equipment)

TOKYO SHISETSU-KOGYO CO.,LTD.

FEATURES

– This is a vibrating conveyor aligns the product from plural line or overlapped and transports to the next process of foreign substance detection device, accumulation, packaging and packing process.
– Deliver the product by up-down movement in a same way of the normal vibration conveyor.
– Solution for improvement of work efficiency and cost reduction.
1) Vibration conveyor consist of several shapes of trough.
2) Products are spread and aligned with no overlap while conveying.
3) Suitable for process review and more improvement by combination with the other equipment.
4) The trough is removable and washable.

SPECIFICATIONS and NOTES

– Applications
Boxing products, pouch-packed products
– Trough size
300(W) × 2,100(L) mm
– Speeds
10~20m/min
– Power usage
0.35kW × 2

TOKYO SHISETSU-KOGYO CO.,LTD.

538-2, Nanae, Tomisato-shi, Chiba 286-0221, Japan
Sales department, industrial machine: Direct number +81-476-92-1192
TEL: +81-476-92-1151 FAX: +81-476-92-1150
URL: http://www.tokyoshisetsu.co.jp
Corporate Profile

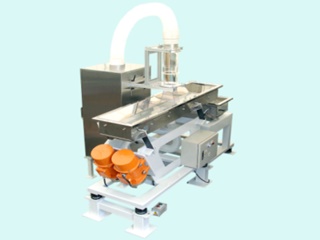

VIBRATING CONVEYOR WITH FOREIGN SUBSTANCE ELIMINATION DEVICE (Packaging Related Equipment)

VIBRATING CONVEYOR WITH FOREIGN SUBSTANCE ELIMINATION DEVICE (Packaging Related Equipment)

TOKYO SHISETSU-KOGYO CO.,LTD.

FEATURES

– Spread the carrying products on the vibrating conveyor and eliminate foreign material by air blowing from underneath the trough.
– Best suit for the light foreign material such as paper slip, hair, plastic slip, lint, or empty bag.
1) The integrated vibrating conveyor and foreign material eliminating device achieves the simple and space-saving system.
2) Elimination is possible with small amount of air. Suitable for eliminating lightweight substances.
3) By adopting the vacuuming and circulating method in design, it is energy saving as well as antiscattering.
4) Air amount is adjustable depends on the shape or weight of the substances.

SPECIFICATIONS and NOTES

– Trough size
300(W) × 1,600(W) mm
– Speeds
10~20m/min
– Power usage
0.35kW × 2
0.1kW × 1

TOKYO SHISETSU-KOGYO CO.,LTD.

538-2, Nanae, Tomisato-shi, Chiba 286-0221, Japan
Sales department, industrial machine: Direct number +81-476-92-1192
TEL: +81-476-92-1151 FAX: +81-476-92-1150
URL: http://www.tokyoshisetsu.co.jp
Corporate Profile
